Device Description

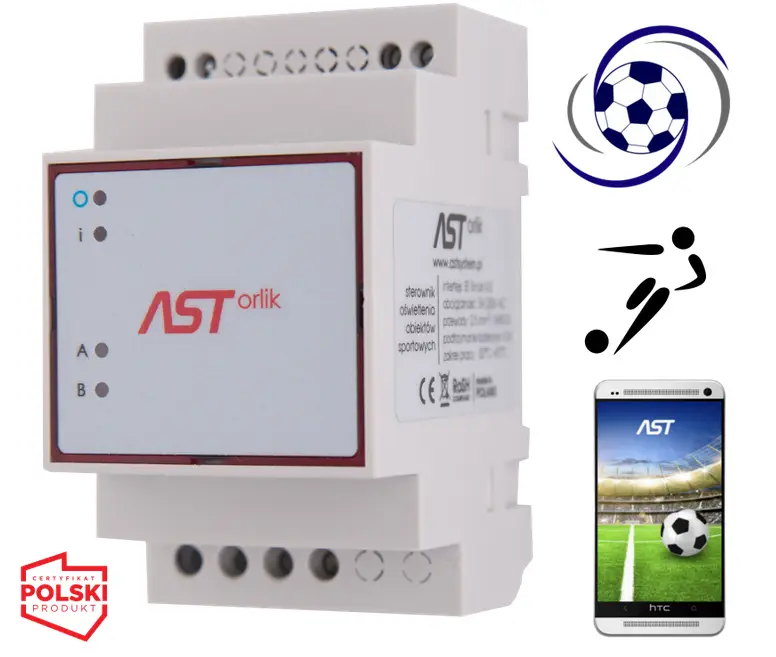

ASTorlik is an intelligent controller designed for the management of lighting systems in sports facilities, football pitches, and recreational areas. As the first solution of its kind, it enables lighting control via a dedicated mobile application, eliminating the need for costly SMS-based systems and recurring subscription fees.

The controller works with the free ASTorlik mobile application, allowing both facility administrators and authorized users to manage lighting quickly, securely, and conveniently using a smartphone or tablet.

Designed for installation on a standard 35 mm DIN rail, ASTorlik occupies only 3 DIN modules. It features 2 independently programmable relay outputs, a cascade input for manual lighting activation, an integrated Bluetooth interface, and a built-in GPS receiver for accurate time synchronization.

Intelligent Sports Lighting Management

Traditional sports lighting systems typically relied on manual switching or SMS-based control, requiring administrator intervention and generating additional operating costs. These solutions often resulted in unnecessary lighting operation, increased energy consumption, and reduced user convenience.

ASTorlik introduces a modern approach to sports facility lighting management.

Using the dedicated mobile application, authorized users can activate the lighting independently according to permissions defined by the facility administrator, while the administrator maintains full control over operating schedules and access times.

This approach significantly improves user comfort while reducing energy consumption and operating costs.

ASTorlik Mobile Application

The free ASTorlik mobile application provides an intuitive and convenient way to control sports facility lighting directly from a smartphone or tablet.

Facility administrators can define:

• Operating hours during which lighting may be activated.
• Maximum lighting duration.
• Availability of individual sports facilities.

Authorized users can:

• Activate lighting independently.
• Select the desired operating time.
• View the remaining lighting time before automatic switch-off.
• Operate the lighting system without administrator assistance.

The result is improved facility availability, greater user convenience, and significant energy savings that can amount to several thousand euros per year, depending on facility usage.

Key Features

• Complete control and configuration using the free ASTorlik mobile application.
• Intuitive and user-friendly interface.
• Encrypted bidirectional Bluetooth communication.
• Built-in GPS receiver.
• Automatic GPS time synchronization.
• Two independently programmable relay outputs for controlling two separate sports facilities.
• Selectable lighting periods of 30, 60, or 90 minutes.
• Continuous operation mode available for facility administrators.
• Configurable operating hours for individual facilities.
• Adjustable maximum operating time for each relay output.
• Cascade input for manual lighting activation.
• Fast and simple wireless configuration.
• No subscription fees or SMS communication costs.

Technical Specifications

Power Supply

• Supply voltage: 230 V AC / 50 Hz
• Operating voltage range: −20% / +10%

Outputs

• 2 independently programmable relay outputs
• Relay rating: 5 A / 230 V AC

Inputs

• 1 cascade input, 230 V AC

GPS

• 72-channel GPS receiver
• Receiver sensitivity: −167 dBm
• Automatic GPS time synchronization

Communication

• Integrated Bluetooth interface
• Encrypted bidirectional data communication

Backup Power

• Backup battery for the real-time clock
• Battery life up to 5 years (without mains power)

Mechanical Characteristics

• Screw terminal connections
• Maximum conductor size: 2.5 mm² (AWG14)

Environmental Conditions

• Operating temperature: −30°C to +80°C
• Protection rating: IP20

Installation

• 35 mm DIN rail mounting
• Width: 53 mm
• Height: 95 mm
• Depth: 58 mm
